SENDUO · QJ & 918 series

918-B / 918-B1

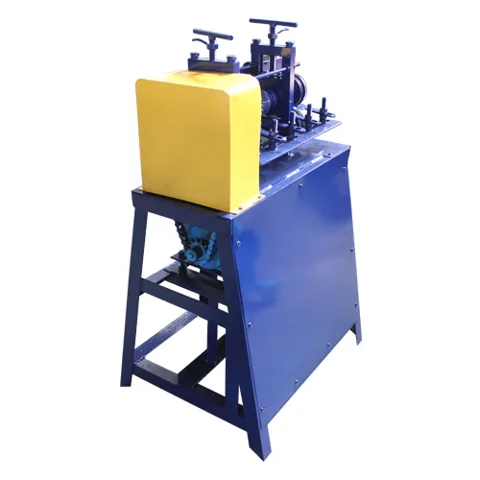

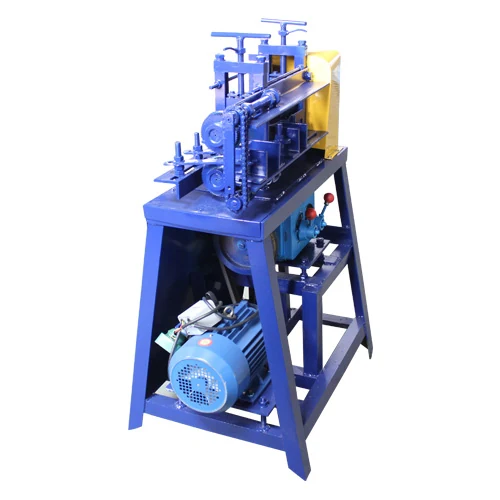

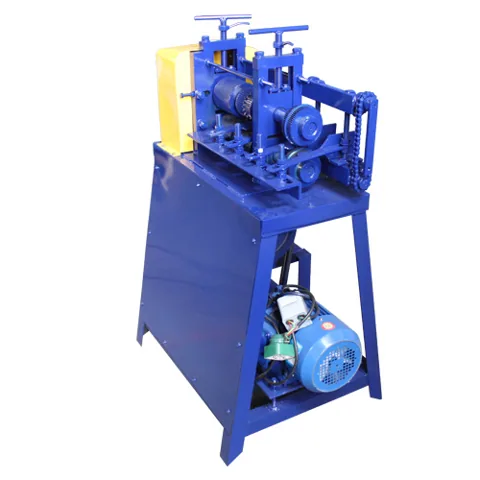

Name: 918-B / 918-B1 Heavy-duty cable stripping machines
Brand: SENDUO

Heavy-duty cable stripping machines

The 918-B series combines heavy-duty cable stripping with a four-speed gearbox. Two configurations, 918-B and 918-B1, cover different cable diameter ranges and installation requirements.

Request a quotation Product handbook

6 pages · English / 中文 · Preview handbook ↓

Designed for the task

Two machine configurations

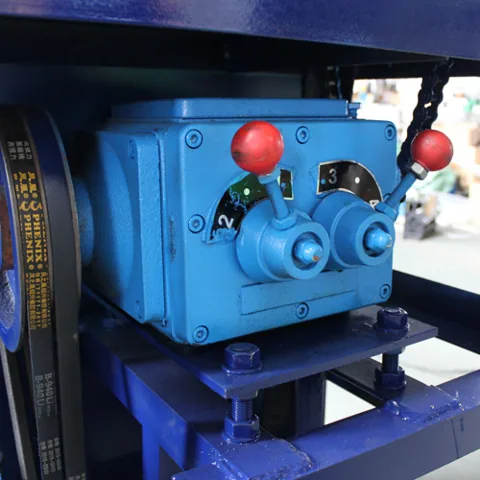

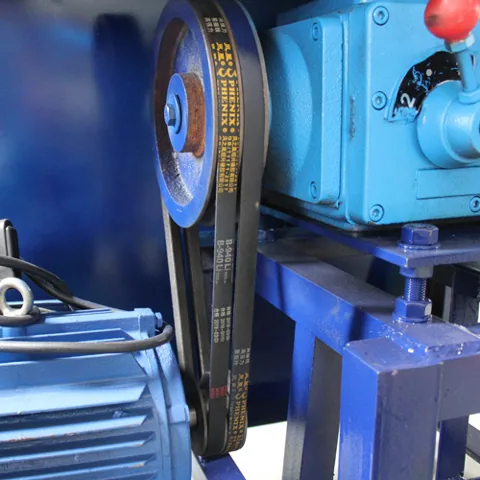

Four-speed gearbox

Suitable for high-voltage cable and optical cable preparation

Application

Cable stripping & conductor recovery

Used to open insulation and prepare conductors for recovery. Match the feed position and cutting configuration to the cable’s outside diameter, insulation material and construction.

Select your configuration

What to include in your enquiry

Cable outside diameter and insulation type
Armored or unarmored cable construction
Available voltage, frequency and phase
Expected daily throughput and destination

Technical specifications

Swipe across to compare configurations.

Specification	918-B	918-B1
Model	918-B	918-B1
Power	3/4 kW	3/5.5 kW
Voltage	220/380 V	220/380 V
Working range	2-100 mm	2-160 mm
Blades	4	4
Feed openings	2	2
Stripping speed	30 m/min	30 m/min
Dimensions	80 × 58 × 120 cm	90 × 68 × 130 cm
Weight	200 kg	250 kg
