QJ-017

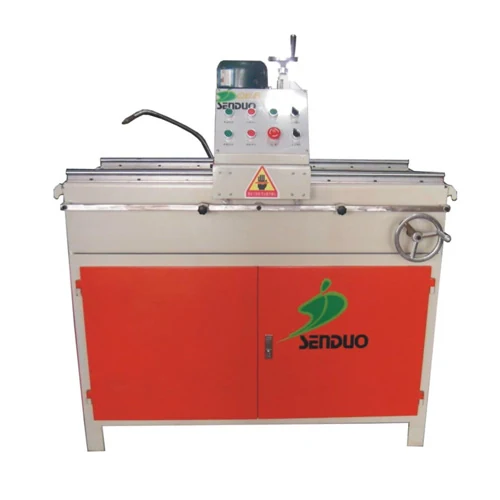

Straight-blade grinder
QJ-017 sharpens straight blades used in granulators, crushers and other machinery. The machine includes a worktable, linear slide, geared drive, cooling system and automatic grinding-head travel.
Working range1-20 mm
Power2.2 kW
Weight260 kg
4 pages · English / 中文 · Preview handbook ↓
Designed for the task
01
Straight-blade sharpening
02
Automatic grinding-head travel
03

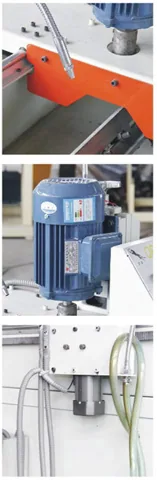

Cooling system and linear slide
Application
Recycling-line support equipment
Used as part of a recycling or maintenance process. Confirm the material characteristics, upstream equipment and required output before selecting a configuration.
Select your configuration
What to include in your enquiry
- Feed material composition and sample photos
- Required hourly output and operating schedule
- Available power supply and installation space
- Required separation process and destination
Technical specifications
Technical specifications
| Specification | Value |
|---|---|
| Model | QJ-017 |
| Power | 2.2 kW |
| Voltage | 220/380 V |
| Working range | 1-20 mm |
| Working angle | 0-180° |
| Travel speed | 2.82 m/min |
| Weight | 260 kg |
Talk to SENDUO
Put QJ-017 to work.
Tell us about your material and requirements. Our team will help match the configuration.
Product handbook
Features, specifications, product views and SENDUO contact details.
Loading product handbook…
