SENDUO · Granulation & separation

QJ-1200

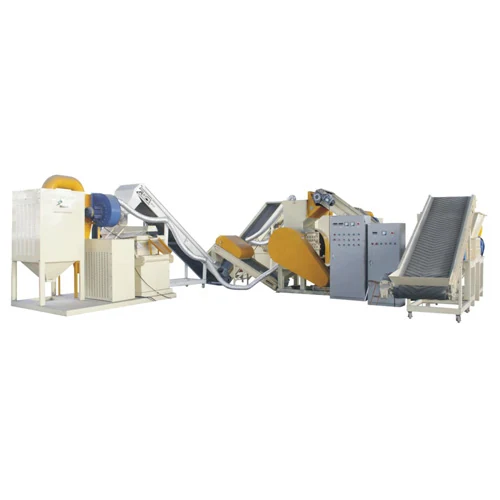

Copper wire granulator

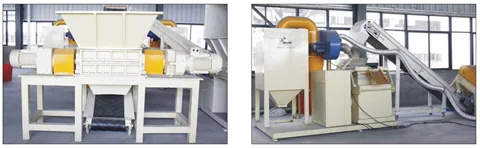

QJ-1200 combines multistage cutting, crushing and air separation to recover copper and plastic from waste cable. The line includes conveying, two crushing stages, cyclone discharge, dust collection and electrical controls.

Working range0.5-40 mm
Power129.36 kW
Processing capacity800-1200 kg/h
Request a quotationProduct handbook

4 pages · English / 中文 · Preview handbook ↓

Designed for the task

01

Two-stage crushing process

02

Air-based copper/plastic separation

03

Conveying and dust collection integration

Application

Copper & plastic separation

Used in cable-recycling workflows that reduce wire into smaller material and separate the metal-rich fraction from insulation. Feed composition and preparation influence the required configuration.

Select your configuration

What to include in your enquiry

  • Feed material composition and sample photos
  • Required hourly output and operating schedule
  • Available power supply and installation space
  • Required separation process and destination

Technical specifications

Technical specifications

SpecificationValue
ModelQJ-1200
Power129.36 kW
Voltage380 V
Working range0.5-40 mm
Blades10+4
Processing capacity800-1200 kg/h
Dimensions160 × 100 × 300 cm
Weight12000 kg
