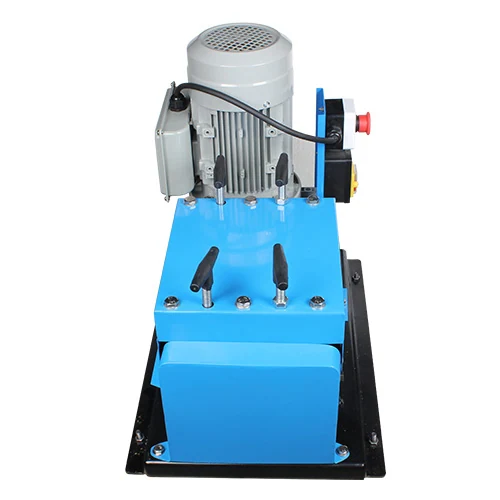

Name: SMS-009 Dual-roller electric wire stripper
Brand: SENDUO

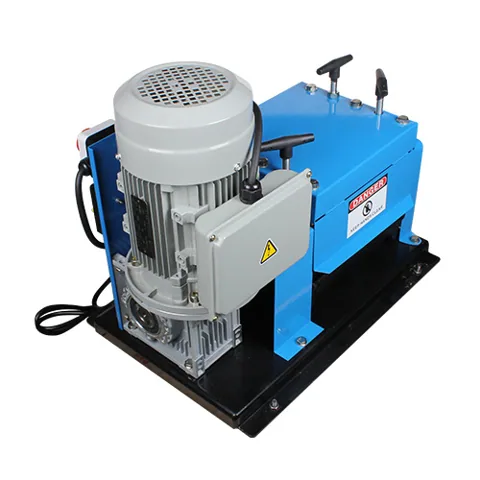

Dual-roller electric wire stripper

SMS-009 uses a double-roller feeding system for scrap-wire stripping. Round-wire openings and flat-wire slots support different cable shapes across a 1.5-42 mm working range.

Working range1.5-42 mm

Power1.5 kW

Stripping speed12 m/min

Request a quotation Product handbook

5 pages · English / 中文 · Preview handbook ↓

Designed for the task

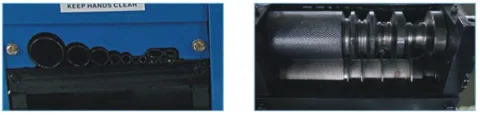

Double-roller feeding

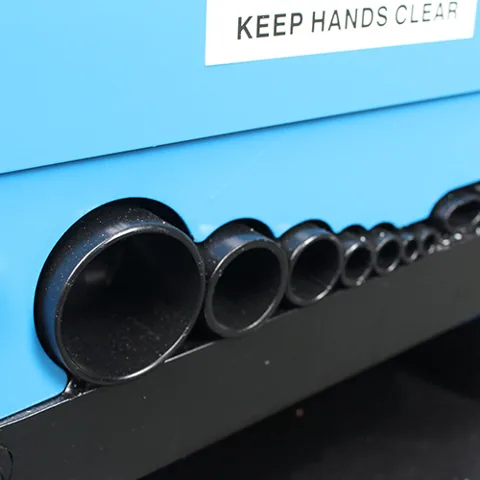

Round-wire holes and flat-wire slots

Scrap-wire and conductor recovery

Application

Workshop wire processing

Suitable for a dedicated wire-recovery workstation. Choose the model and drive arrangement around cable size, daily working volume and available workspace.

Select your configuration

What to include in your enquiry

Cable outside diameter and insulation type
Armored or unarmored cable construction
Available voltage, frequency and phase
Expected daily throughput and destination

Technical specifications

Specification	Value
Model	SMS-009
Power	1.5 kW
Voltage	220 / 110 V
Working range	1.5-42 mm
Blades	13 pcs
Feed openings	9
Stripping speed	12 m/min
Dimensions	58 × 40 × 50 cm
Weight	72 kg
Package dimensions	60 × 42 × 64 cm
Package weight	80 kg
