SENDUO · QJ & 918 series

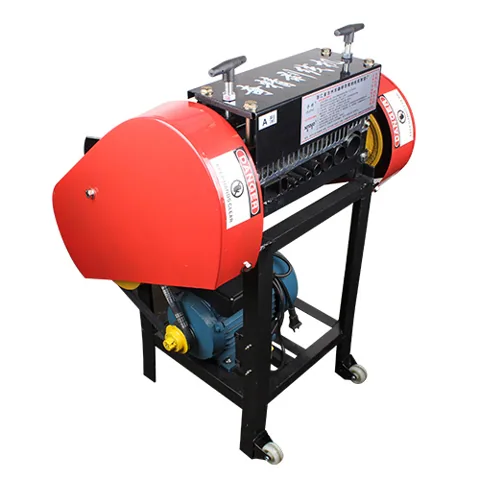

918-AO

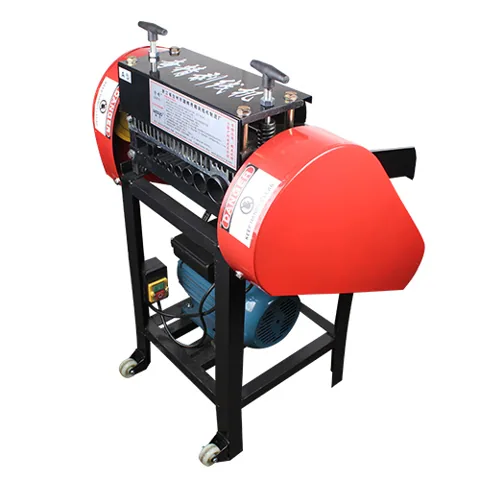

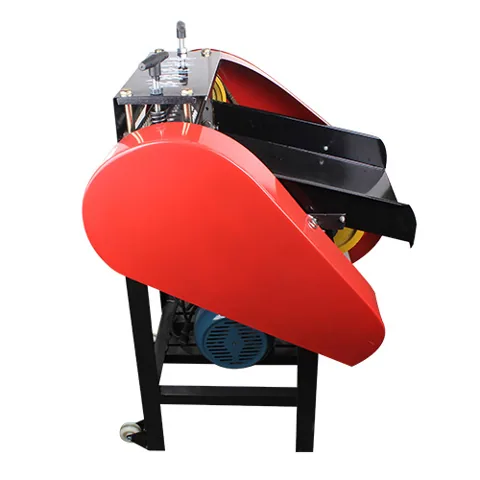

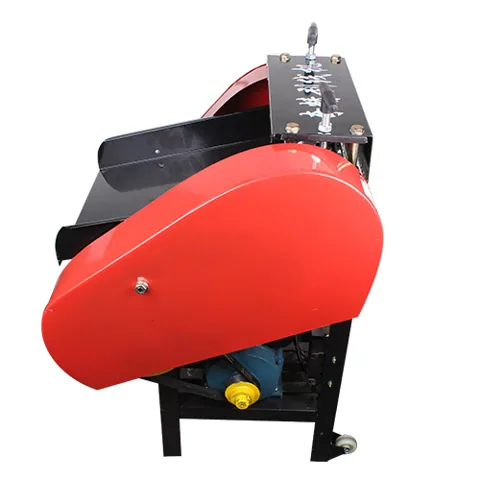

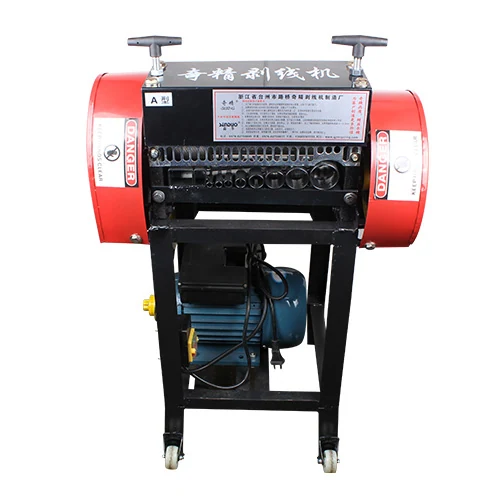

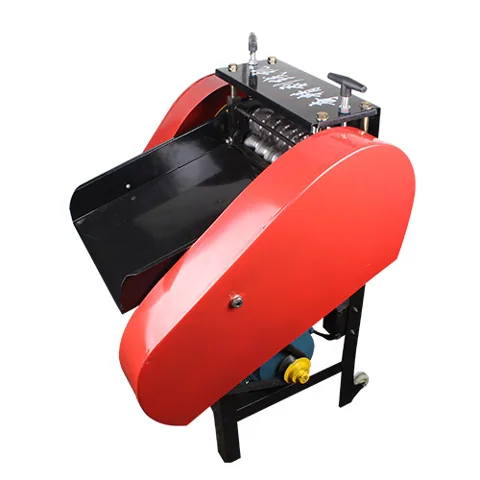

Single-roller cable stripping machine

918-AO is a single-roller, single-blade wire stripping machine. It provides powered insulation removal for electrical cable within the specified working range.

Working range1-25 mm
Power1.5 kW
Stripping speed30 m/min
Request a quotationProduct handbook

5 pages · English / 中文 · Preview handbook ↓

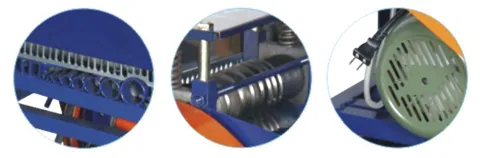

Designed for the task

01

Single-roller configuration

02

Single-blade cutting arrangement

03

Powered insulation removal

Application

Cable stripping & conductor recovery

Used to open insulation and prepare conductors for recovery. Match the feed position and cutting configuration to the cable’s outside diameter, insulation material and construction.

Select your configuration

What to include in your enquiry

  • Cable outside diameter and insulation type
  • Armored or unarmored cable construction
  • Available voltage, frequency and phase
  • Expected daily throughput and destination

Technical specifications

Technical specifications

SpecificationValue
Model918-AO
Power1.5 kW
Voltage220/380 V
Working range1-25 mm
Blades8
Feed openings3+8
Stripping speed30 m/min
Dimensions55 × 51 × 84 cm
Weight60 kg

Talk to SENDUO

Put 918-AO to work.

Tell us about your material and requirements. Our team will help match the configuration.

Discuss this product →

Product handbook

Features, specifications, product views and SENDUO contact details.

Download PDF
1 / 5100%Open handbook
