918-KOB

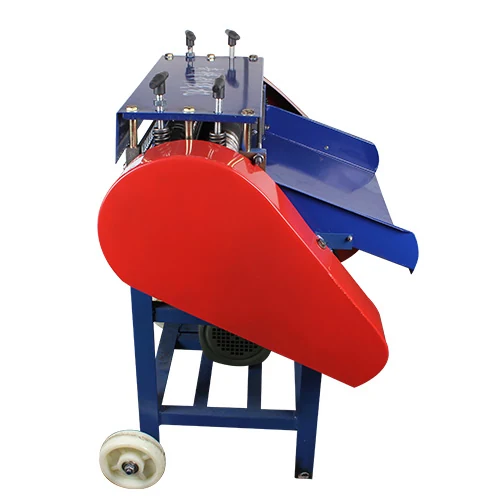

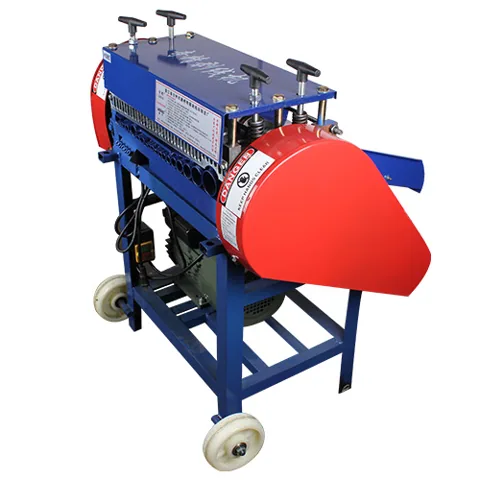

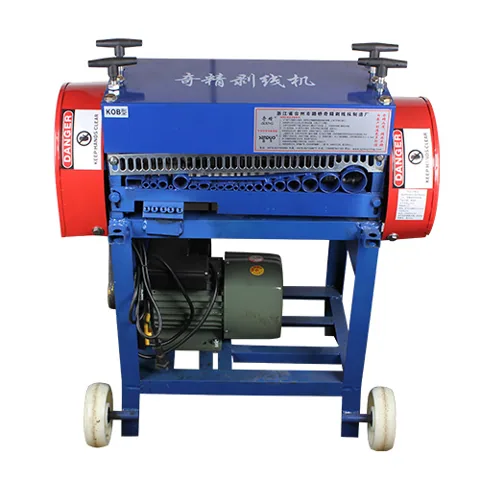

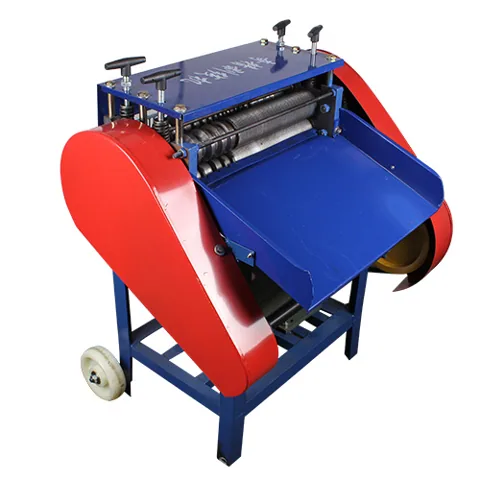

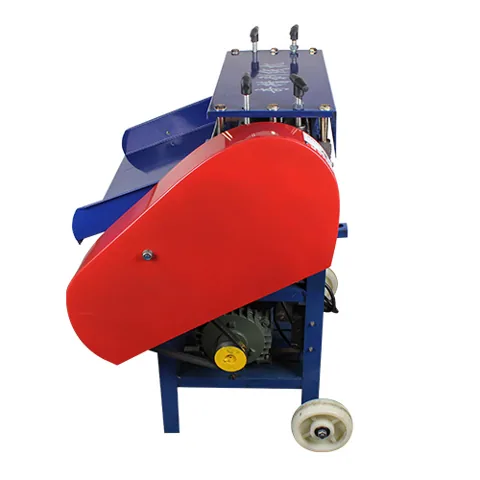

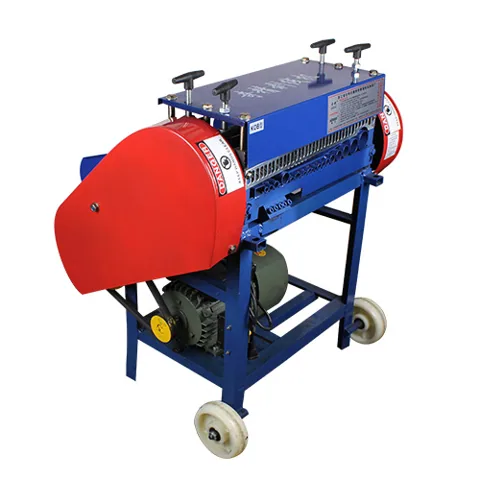

Name: 918-KOB Dual-roller cable stripping machine
Brand: SENDUO

Dual-roller cable stripping machine

918-KOB uses dual rollers and multiple blades for wire stripping. Its cutting arrangement includes five bracket-mounted blades and supports two-core flat cable processing.

Working range1-42 mm

Power2.2 kW

Stripping speed30 m/min

Request a quotation Product handbook

5 pages · English / 中文 · Preview handbook ↓

Designed for the task

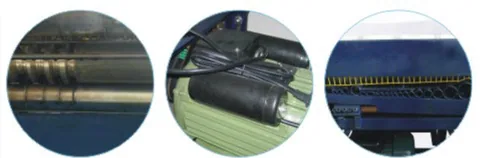

Dual-roller arrangement

Five bracket-mounted blades

Two-core flat cable applications

Application

Cable stripping & conductor recovery

Used to open insulation and prepare conductors for recovery. Match the feed position and cutting configuration to the cable’s outside diameter, insulation material and construction.

Select your configuration

What to include in your enquiry

Cable outside diameter and insulation type
Armored or unarmored cable construction
Available voltage, frequency and phase
Expected daily throughput and destination

Technical specifications

Specification	Value
Model	918-KOB
Power	2.2 kW
Voltage	220/380 V
Working range	1-42 mm
Blades	23+5
Feed openings	21(1+5+5+10)
Stripping speed	30 m/min
Dimensions	70 × 61 × 84 cm
Weight	110 kg
